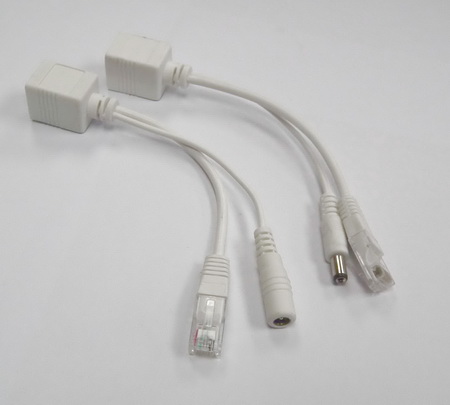

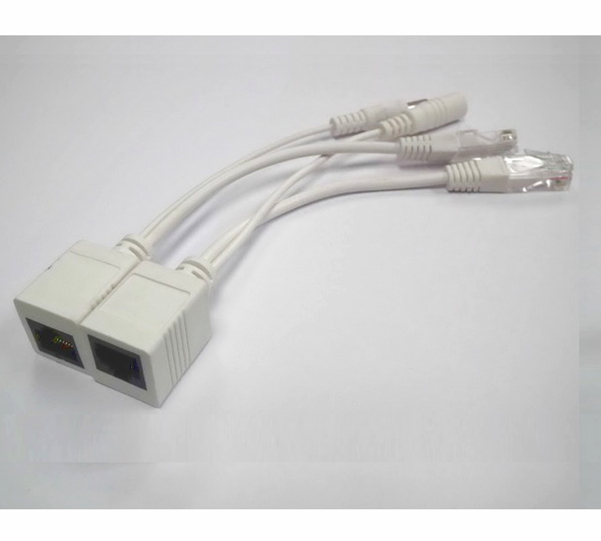

Passive POE cable

Product name：Passive POE cable
Part number ：POE-cable

Specification :
●Passive POE cable( Injector / Splitter )
●RJ45 PIN 12,36,Data
●Input Voltage Range：12V DC to 48 VDC  1A max
●Female RJ45 connector to 2.1mm x 5.5mm female jack
●Female RJ45 connector to 2.1mm x 5.5mm power plug
●Injector: RJ45 Male + Power In to RJ45 Female
●Splitter: RJ45 Female to RJ45 Male + Power Out
●CAT-5e Power Pinouts  +vDC Pins 4/ 5 and -vDC Pins 7/ 8
●Power/Data mixer
●Ethernet switches expand to wireless AP
●White color

 For more info, please contact sales@pypelectronic.com .
