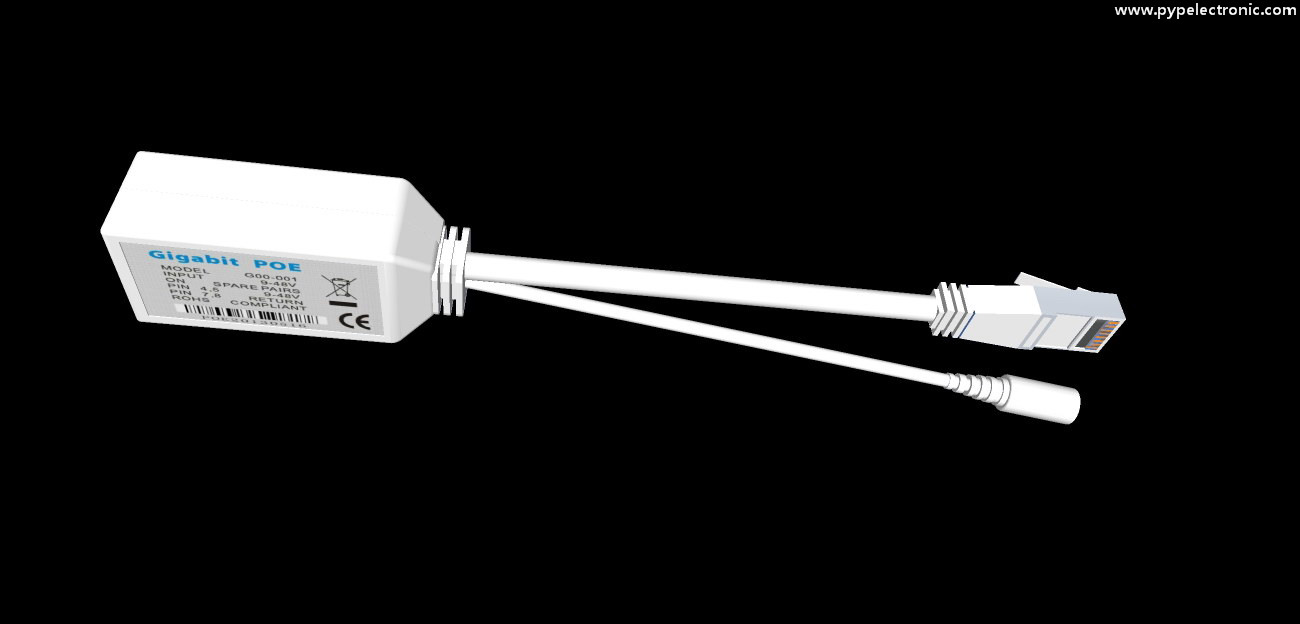

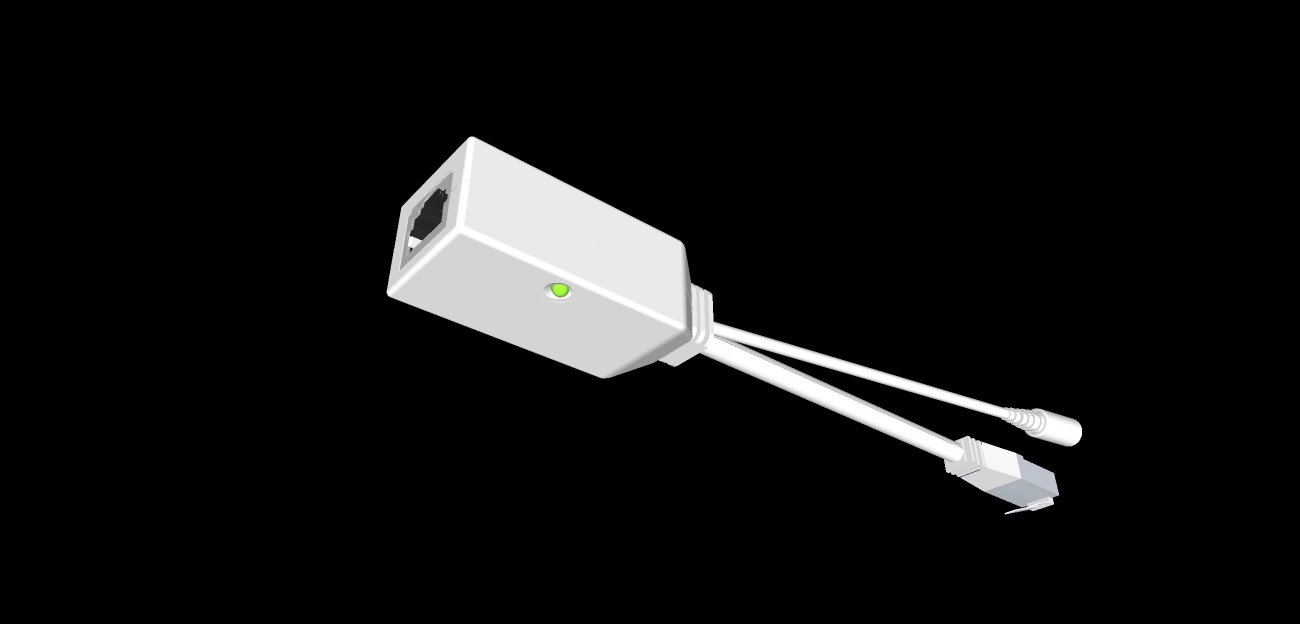

Gigabit POE injector

Product name：Gigabit passive POE Injector on cable
Part number ：G00-001

Introduction:
●Gigabit passive POE Injector
●RJ45 PIN: 12,36,45,78 Data
●Input Voltage Range：9V DC to 48 VDC  1A max
●Ethernet Connection: One (1) 10/100/1000 BaseT (RJ-45 jack)  and One(1) 10/100/1000 BaseT (RJ45 plug)
●Power Connection: One (1) Male 2.1 mm (I.D.) 5.5 mm (O.D.)
●CAT-5e Power Pinouts:  vDC Pins 4/ 5 and -vDC Pins 7/ 8
●Length: 20cm

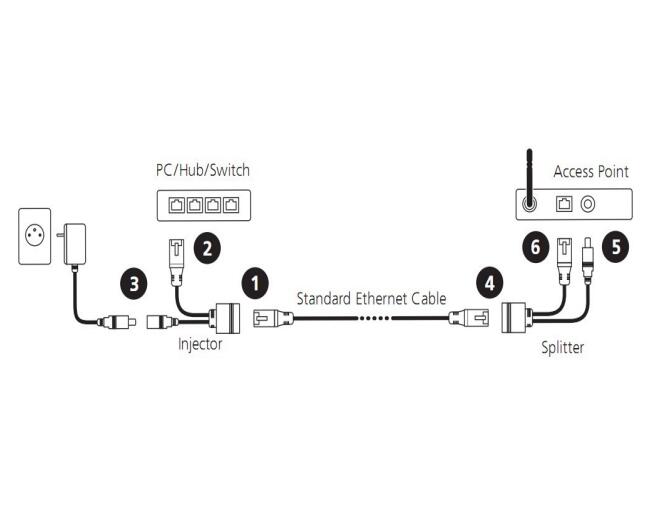

●Power/Data mixer
●Ethernet switches expand to wireless AP
●White color
For more info, please contact sales@pypelectronic.com .
