Product description: POE switch
INQUIRY

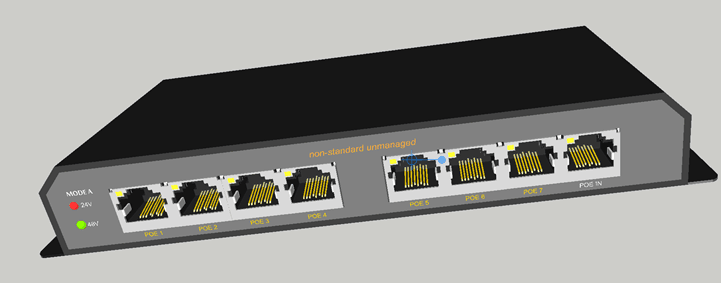

Product name：POE switch 8 port
Part number ：POES8A

Specification :

• 8 switch ports with 10/100 auto detect operation with status LED

• Available power supply options

o 18 volts, 24 volts, 48 volts 56 volts
o 30 watts, 60 watts, 120 watts，200watts
o 100 to 240 volt AC input, 50 or 60 hz high efficiency
• 7 always on PoE outputs with either Mode A and/or Mode B
o Mode A power and data on pins 12 (-) and 36 (+)
o Mode B power or pins 45 (+) and 78 (-) with
data on pins 12 and 36
• Dual PTC fuses on each PoE output port
o One 650 ma fuse per port for Mode A
o One 1000 ma fuse per port for Mode B
• 18 volt to 56 volt operation
• 3 power supply inputs
o 2x 2.1mm power connectors, center positive
o Mode A input with LED status
o Mode B input with LED status
o LED indicates 18/24 volt operation or 48/56 volt operation
o Maximum input current per mode – 2.5 amps
o Mode B PoE power input from the uplink port – 1.25 amps max
• Dual Power supply operation
o Redundancy - 48v 802.3af only – see text
o Load balancing – 48v 802.3af only – see text
o Mixed voltage – Mode A at 48v and Mode B at 24v – see text
• Uplink port 10/100 mb
o No PoE voltage out
o Auto detect 568 A or 568 B connections
• 802.3af emulation ( always on, no autonegotiation)
o 48 volt in either A or B modes
• Mikrotik, OpenMesh, Ubiquiti passive PoE
o 24 volt in mode B
