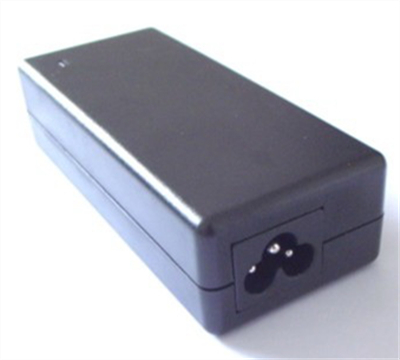

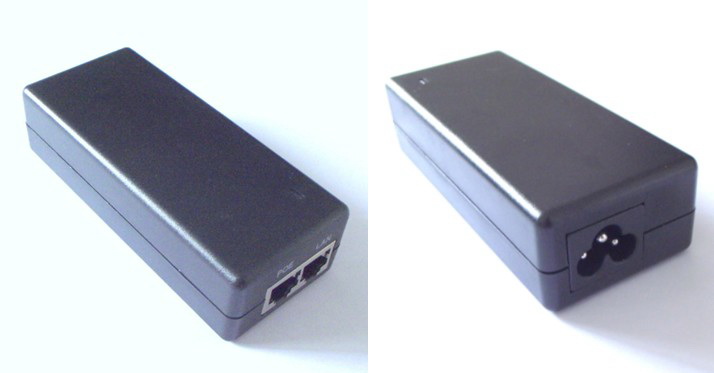

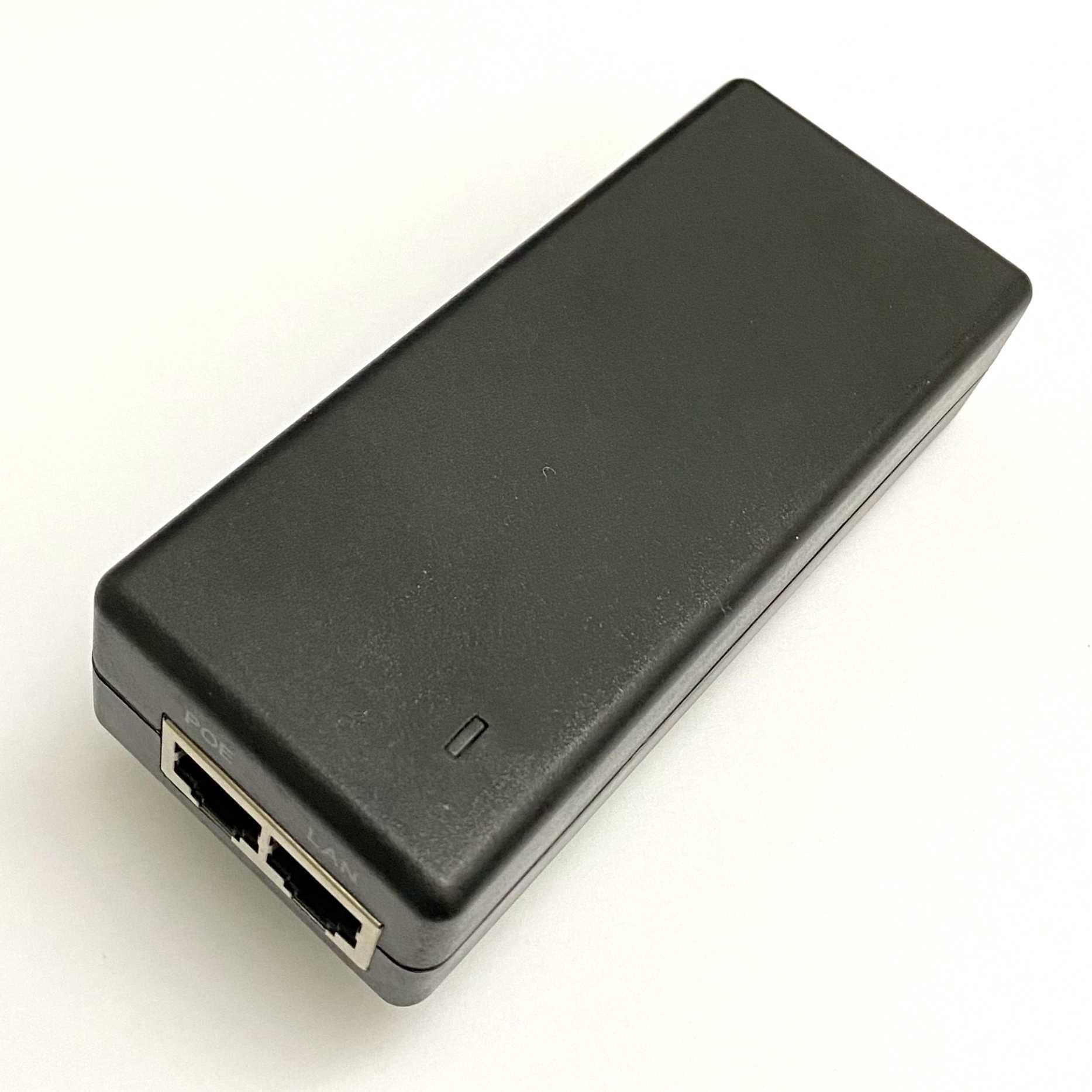

Gigabit POE adapter desk-top

Product Name：Gigabit POE adapter desk-top type
Part number ：POE-G241000B, POE-G241600B, POE-G242000B, POE-G481000B, POE-G300500B, POE-G560275B

Introduction:
Input: 100~240V AC
Output: 24V1A, 24V1.6A, 24V2A, 48V1A, 30V0.5A,
56V0.275A or on request.
C8/C6/C14 Plug type
10M/100M/1000M Self-adaption
Output Plug:RJ45-2 ( LAN－DATA IN，POE－DATA&POWER OUT)
POE port:
PIN 4 5 +volt&data , PIN 7 8 -volt&data
(MODE B, and MODE A optional)

Features:
1. CE Certification
2. Rohs Compliance
3. Light Weight
4. Input & Output protection
5. Over-Voltage Protective Installation
6. Short-circuit Protective Installation
7. Protection Type: Auto-Recover
8. 2 status LED indicator.
9. MTBF:30,000H(at 25℃)
For more info, please contact : sales@pypelectronic.com
