POE power supply

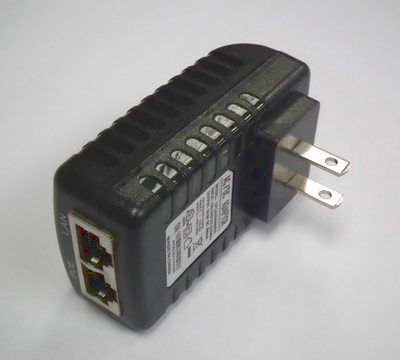

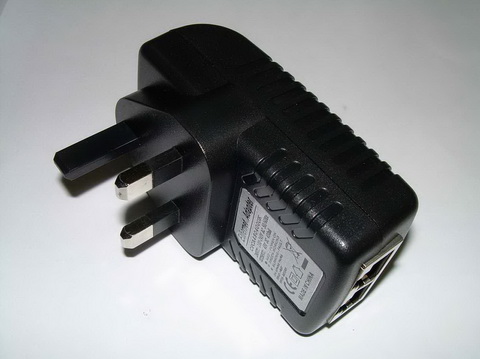

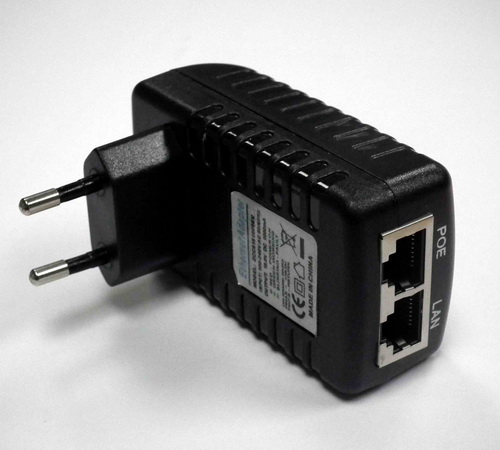

Gigabit POE adapter wall-mount

Product description: Gigabit POE adapter, wall-mount type, 12V1A, 18V1A, 24V1A etc...
INQUIRY

Product name：Gigabit POE adapter 12V1A, 18V1A, 24V1A

Part number ：POE-G121000EU/POE-G181000EU/POE-G241000EU

Introduction:

Input: 100~240V AC

Output: 12V1A DC

Wall-mount type

EU Plug type (US/UK/AU optional)

10M/100M/1000M Self-adaption

Output Plug:RJ45-2 ( LAN－DATA IN，POE－DATA&POWER OUT)

POE port:

PIN 4 5 +volt&data , PIN 7 8 -volt&data

(MODE B, and MODE A optional)

Features:

1. CE Certification

2. Rohs Compliance

3. Light Weight

4. Input & Output protection

5. Over-Voltage Protective Installation

6. Short-circuit Protective Installation

7. Protection Type: Auto-Recover

8. 2 status LED indicator

9. MTBF:30,000H(at 25℃)

For more info, please contact sales@pypelectronic.com
