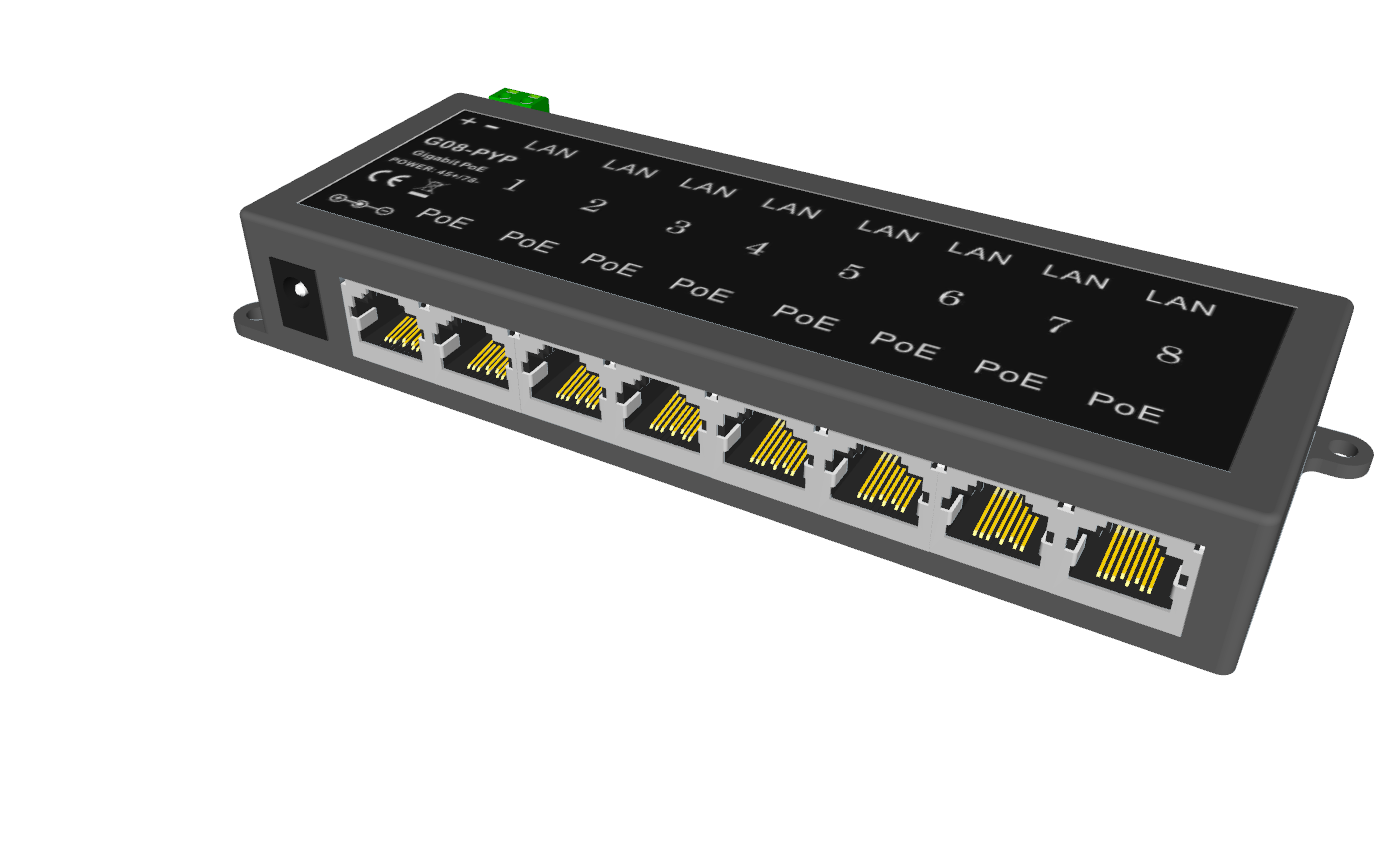

8 Port Gigabit Power Over Ethernet Injector
-8 Shielded RJ-45 LAN
-8 Shielded RJ-45 LAN(DATA)+POWER
- 10/100/1000 data rates
Injector size: 165mm x 54mm x 25mm
-wall mount - stackable
-1000 mA automatic resettable fuse on each port
Same voltage to all ports power is shared as needed
by the devices
Use with any Ethernet switch
-PoE or non-PoE switches
Standard power connector: 12-57V DC input
-2.1x5.5mm
Additional Phoenix connector: 12-57V DC input
-3.5mm PIN2
Ideal for IP Camera,VOIP phone,WiFi Access and so on
GA8-PYP: Mode A(Pin12-/36+)
GB8-PYP: Mode B(Pin45+/78-)
